Updating Connectivity Settings on the Zebra ZQ310 Mobile Printer
Technical Difficulty (9/10)
This connectivity update should be performed by someone experienced with installing software and updating settings on devices. The process requires that the printer be fully charged and that a roll of paper is installed prior to starting.
Description
The ZQ310 Mobile Printers are used by many industries for different purposes since they are reliable devices and they provide Bluetooth and WiFi connectivity that allow users to use them in a variety of scenarios.
The ZQ310 printers come, by default, with their Bluetooth antenna turned off; this means that they have their WiFi antenna turned on. Our Hero mobile app is designed to send information to Android and IOS devices via Bluetooth; therefore, the Bluetooth antenna must be turned on in order to pair it with these devices.
The easiest way to turn the antenna ON is by pressing the feed button for 5 to 10 seconds until you see the Bluetooth icon flashing in the printer's user interface. That enables Bluetooth, and Android and IOS devices should be able to find and pair the printer; however, these printers might not be discoverable yet. You need to send some commands to the printer to turn the discoverable connection on.
Warning! If you are planning to use this printer with different IOS or Android devices, it is essential to unpair the printer before pairing it with a different device. Make sure the printer is on and not idle when unpairing it; otherwise, you might have connectivity issues.
The next steps show how to change the discoverable mode on.
This update consists of a series of steps that must be followed:
Step 1: Downloading and installing the Zebra Setup Utilities for Windows.
Step 2: Locating and adding the Printer using the Zebra Setup Utilities.
Step 3: Sending and enabling the printer's Bluetooth.
Requirements
You will require the following:
- A Microsoft-based Windows Computer with admin credentials (IT Level)
- The ZQ310 printer is fully charged
- The ZQ310 USB Type-C charging Cable
- The Zebra Setup Utilities for Windows.
Step 1: Download and install the Zebra Setup Utilities for Windows.
1.1. Click HERE to check this support article that shows how to install the Zebra Setup Utilities for Windows
Step 2: Locate and add the Printer using the Zebra Setup Utilities.
2.1 Power the printer on and plug it into the Windows computer using the USB Type-C cable.
2.2 Open the Zebra Setup Utilities software you installed in the previous step and click on "Install New Printer".
2.3. It will open a new window. Click next.
2.4. Select Install Printer.
2.5. Locate and select the printer you are working on from the list of printers and click next.
2.6. Scroll down and select the correct USB port you are using.

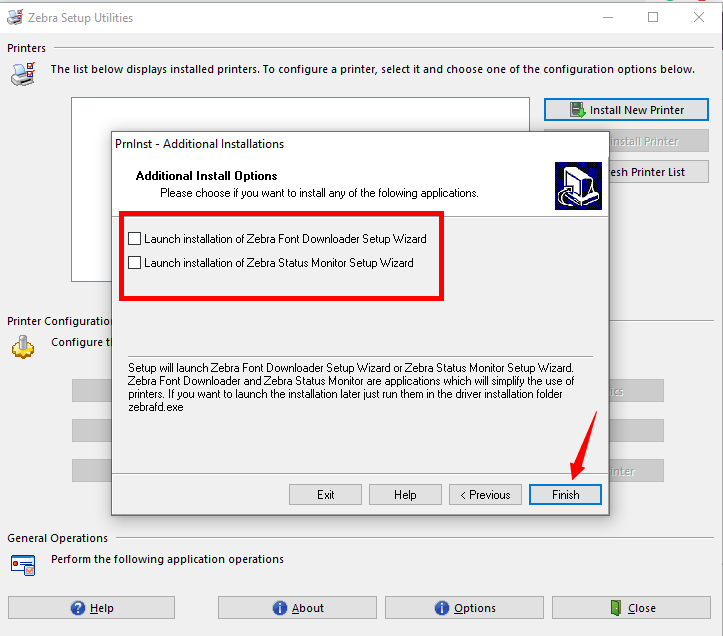

2.7. Uncheck these two options and click on finish to add the printer.
Step 3: Send and enable the printer's Bluetooth discoverable feature.
3.1. Select the printer you have plugged in and click on Configure Printer Connectivity.
3.2. Select the Bluetooth option and click next.
3.3. The software enables Bluetooth and sets Discoverable ON so we just need to send these commands to the printer via USB. If you want, you can name the printer in the section "Friendly name". The rest of the information should remain as shown in the screenshot.
3.4. Click next.
3.5. Click next.
3.6. Finally, select Printer and click on Finish.
3.7. Zebra Utilities will send the commands to the printer via USB. The power button will turn on and vanish several times while it is sending the information. Once it is completed, it will light a solid color on the Power button. The process is complete. Reboot the printer and pair it with a mobile device.
